pdft

Trainable multilinear bases for image compression and inpainting, learned on the unitary manifold in JAX

Overview

pdft is a JAX library for learning parametric quantum Fourier transforms by manifold optimization. It replaces the fixed DFT or DCT with a basis that is trained per dataset, while keeping near-linear transform cost, exact invertibility, and a parameter count polylogarithmic in the image size.

The core idea: optimize circuit parameters on Riemannian manifolds (products of U(2) and U(1) groups) to learn frequency-domain representations that are more compressible than the standard DFT. On Quick Draw line drawings, the trained basis stores images in roughly 20% fewer bytes than JPEG’s 8×8 block cosine transform at the same reconstruction quality.

The same circuits, with the Hadamards frozen, are the trainable transforms of the follow-up paper on image inpainting (arXiv:2609.17298) — see Coherence and image inpainting below.

pdft is the maintained implementation. It supersedes the original Julia package ParametricDFT.jl, which is slated for archival — see Julia lineage below.

Circuit Architectures

Four circuit variants and the DCT-IV

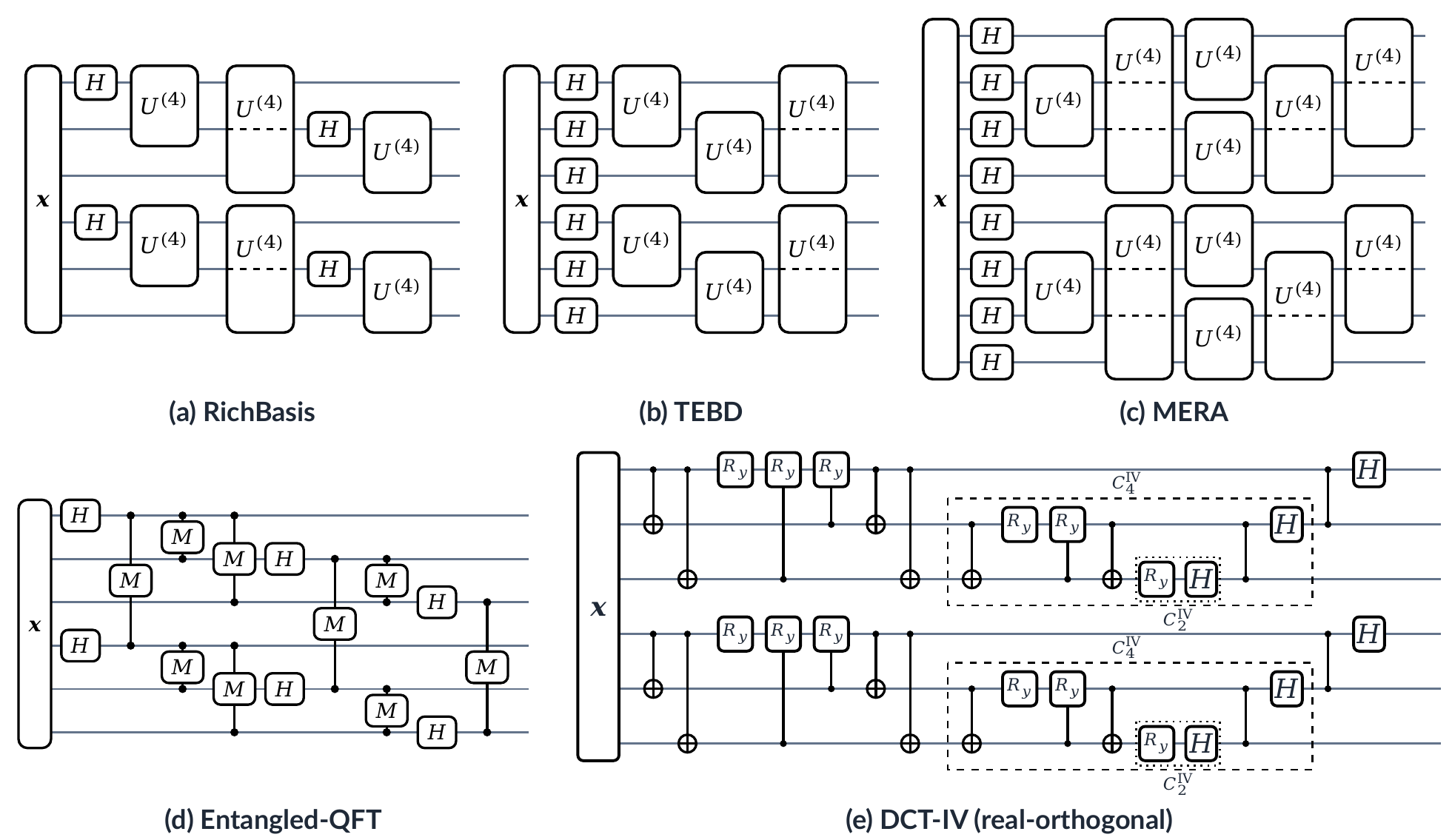

Figure 2 from the paper — four circuit variants and the DCT-IV acting on an input image x. A box spanning two legs is a general two-qubit tensor U⁽⁴⁾ ∈ U(4), shared by (a)–(c), which differ only in wiring. A bond with two endpoint dots is a controlled phase M ∈ U(1)⁴, used in (d) both within and across the two wires.

The variants keep the same local gate and differ in how those tensors are wired:

QFT — the parametric Cooley–Tukey template the rest of the family relaxes from
RichBasis (a) — relaxes the QFT’s phase gate to an all-to-all pattern
TEBD (b) — nearest-neighbour ring topology
MERA (c) — hierarchy of disentanglers and isometries
Entangled QFT (d) — two QFT registers plus one controlled phase between each matched row–column pair; setting those phases to zero recovers the separable QFT
DCT-IV (e) — real-orthogonal, exact, and used as an initialization
Blocked variants of the above

Training

Optimization runs on the manifold of unitary matrices, so every iterate stays exactly orthonormal and the learned transform remains invertible by construction. Two Riemannian optimizers are provided: gradient descent and Adam.

import jax
import jax.numpy as jnp
import pdft

target = jax.random.normal(jax.random.PRNGKey(7), (4, 4)).astype(jnp.complex128)
basis = pdft.QFTBasis(m=2, n=2)

result = pdft.train_basis(
    basis,
    target=target,
    loss=pdft.L1Norm(),
    optimizer=pdft.RiemannianGD(lr=0.01),
    steps=50,
    seed=0,
)

Because the whole stack is JAX, training is JIT-compiled and runs on CPU, GPU, or TPU without a separate accelerator backend.

Beyond training, the package covers JSON and compression I/O, visualization, and runnable demos under examples/ for basis training, optimizer benchmarking, and MERA.

Coherence and Image Inpainting

Compression cares only how few coefficients a basis needs. Recovering an image from a subset of its pixels — inpainting, completion, compressed sensing — is governed by a second quantity, the coherence of the basis with the pixel basis,

μ(U) = N max_ij

U_ij

² ∈ [1, N],

and the number of samples needed for recovery grows linearly with it. Every basis in pdft starts at μ = 1, and there is a structural reason it can stay there: if the only non-diagonal gates are one Hadamard per wire, then

U_ij

= N^−1/2 for every parameter value, so μ = 1 identically. Training the controlled-phase gates arbitrarily hard, on any objective, cannot move it. Training the Hadamard or U(4) gates can and does.

The pdft.coherence module makes this checkable before a run rather than measured after it: certify_flat_modulus reports whether a basis with a given set of frozen gates keeps μ = 1 identically, and otherwise returns exactly which gates must be held fixed, in the form that train_basis_batched accepts.

The paper Quantum-Inspired Trainable and Parameter-Efficient Tensor Networks for Image Inpainting (arXiv:2609.17298, with Konstantinos Slavakis, submitted to ICASSP 2027) builds on exactly this. With the Hadamards frozen the circuit is a diagonal relaxation of the QFT: unitary for every parameter value, O(N² log N) to apply to an N × N image, and trainable with plain Adam through an unrolled hard-thresholding recovery, with no Riemannian retractions and no coherence penalty. On DIV2K at 10% observed pixels, the model with 288 trainable phases outperforms the DFT by 2.0 dB and the best fixed transform by 1.6 dB in PSNR, and comes within 0.2 dB of a learned butterfly factorization with 64 times as many parameters. Freeing the Hadamards as well buys a further 0.2 dB, but coherence then drifts above 1 and the retractions return.

Julia Lineage

pdft began as a port of ParametricDFT.jl and is a feature-complete one: parity against the Julia reference is verified by committed golden files covering training routines, I/O, and visualization. With the port complete, the Julia package is being retired in favor of pdft.

One piece of that work outlived the port. GPU-accelerated Riemannian optimization, originally written to bypass limitations in existing Julia manifold libraries, was upstreamed into ManifoldsGPU.jl and now serves the JuliaManifolds ecosystem independently of this project.

Key Dependencies

Package	Role
JAX	Autodiff, JIT compilation, accelerators
NumPy	Array manipulation and I/O
Matplotlib	Visualization of bases and reconstructions
